Our Machinery & Equipment

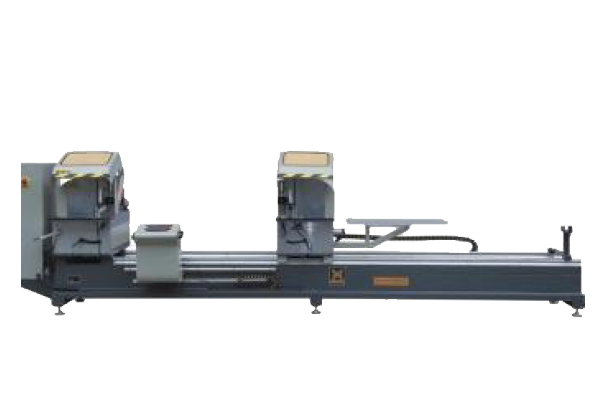

CNC Double Head Sawing Machine

It used for cutting large section aluminium profile at 45° and 90°
Cutting motor is imported from Italy, which connects with saw blades directly
It adopts Schneider NC system, stable and reliable performance.
The saw blade feeding device is below the worktable has some characteristics as big cutting travel and large cutting range.
Cemented carbide saw blade with high percision makes the stable rotation and cutting surface smooth.

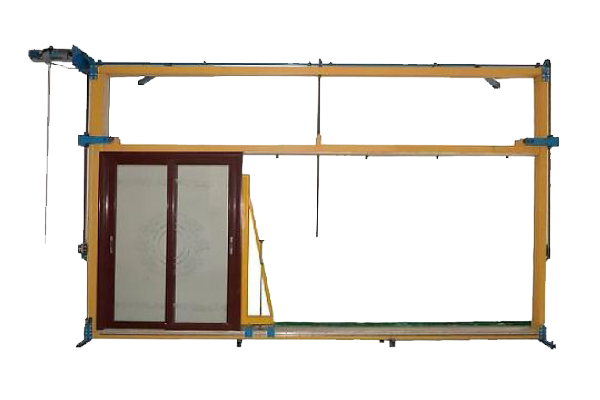

Used to test the door and window quality checking.
Ensuring produce the high quality product, durable, and can last for a long time.

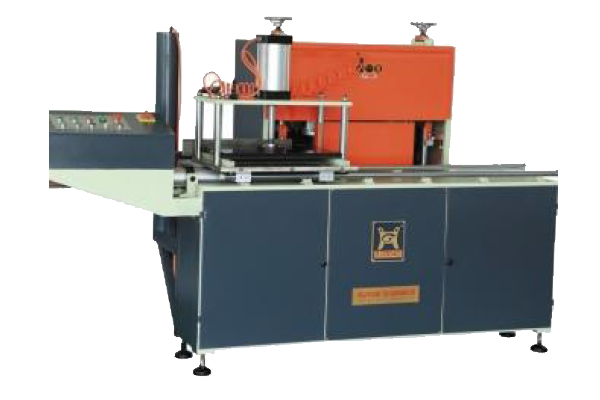

Milling the aluminium mullion profile to connect the mullion profile and frame profile.
Can mill many profile in one time with high productivity.Milling knives can be adjusted up/down and left/right to meet different type of profile.
Four horizontal milling knives and one vertical milling knives combination to mill strengthened type of mullion profile.
Large diameter of milling knives, high speed milling, good quality milling profile surface.

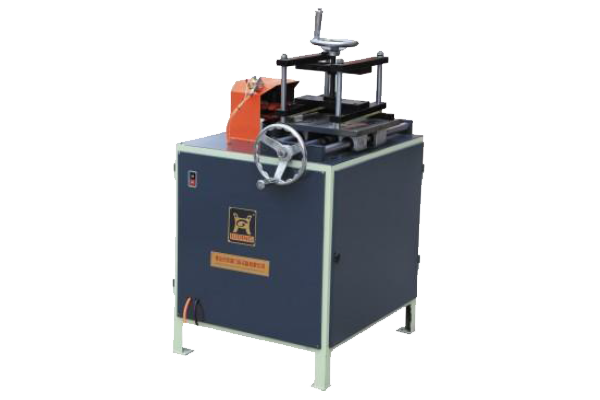

For aluminium surface milling, to meet the different cross-section profiles with. .
The notch or stepped surface can be perpendicular to the longitudinal direction of the profile, or at an angle. .
Table by adjusting the positioning plate corner, you can milling any angle of the face.

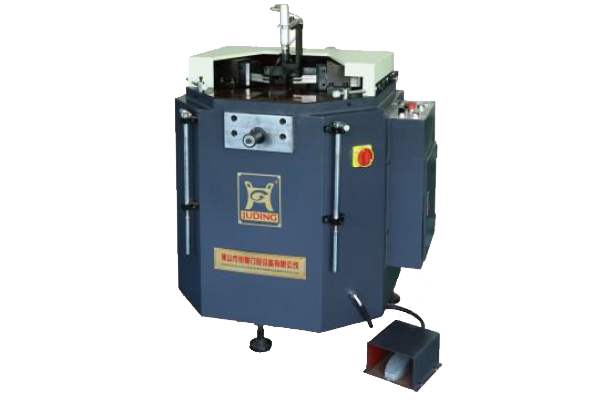

It is suitable for the punch rivet connection of aluminium doors & window.
The corner combining power is supplied by the hydraulic system, with large punching and riveting force, processing stably.
The combining cutters can be adjusted up and down within a large scope, which is suitable for the high profile.
It can be configured with double-edge combining cutters, which strengthens the corner combination.
Siemens control system to ensure machine work stable and reliable.

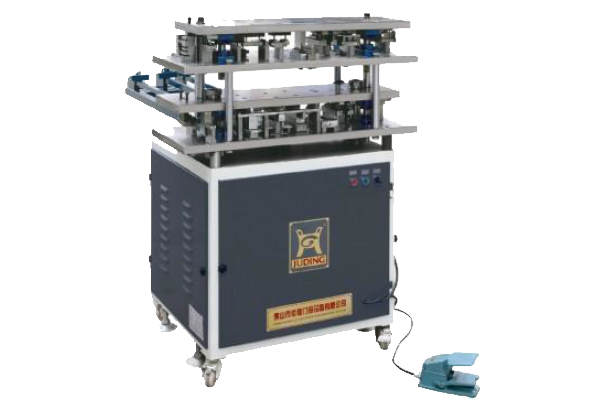

Use for hardwires slots and bores punching of aluminium windows and doors.
The driving is controlled by the pneumatic step value to make the works stable.
The five working position can finish corner cutting and the driver’s cutting and punching processing.

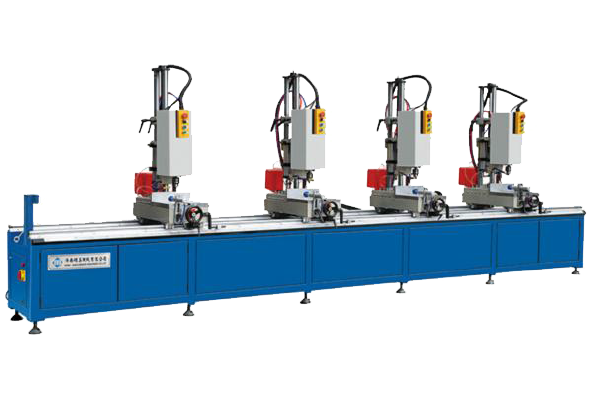

Use for drilling holes on aluminium profiles and cutting wall profiles. Apply to volumeproduce.
Max processing profile section size is 250x250mm, max processing length is 5000mm.
Multi-head boring anchor can be fixed to meet multi-holes processing requirement.
Feeding system adopts airdraulic-damping cylinder, which ensured smooth feeding.
Imported schneider PLC control system with steady capability.

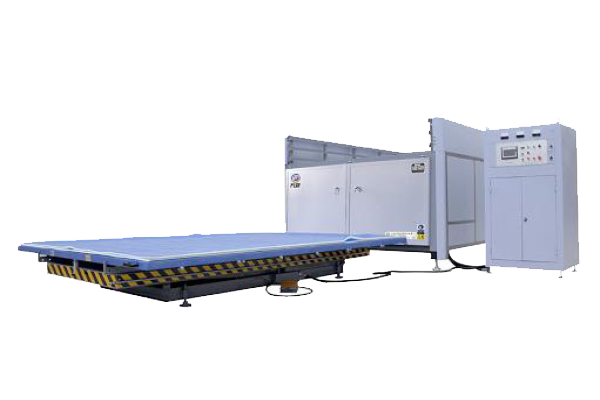

Equipped with a glass lifting table and a cooling shelf, saving space labers.
Adopting R&D high-temperature-resistant and high-strength silicone rubber vacuum bags, ensuring high vacuum level and long service life.
R&D vacuum pumps and power-off protection system avoid producing failure when the factory’s power is off.
Adopting high-density heat insulation board, ensuring excellent heat insulation and low electricity cost.

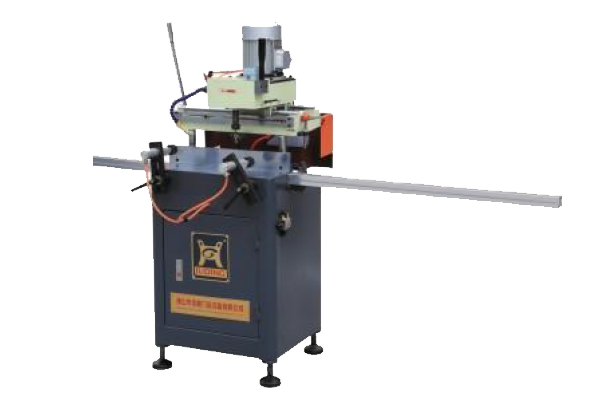

Used for copy-routing processing various kinds of holes,grooves and water-slots on aluminium windows and doors.
Feeding self-locking makes operation convenient.
Used new type high speed spindle to ensure work stability and reliable. The belt replacement is convenient.
It adopts copy-routing model and assistant orientation model.
Compact structure and small volume.

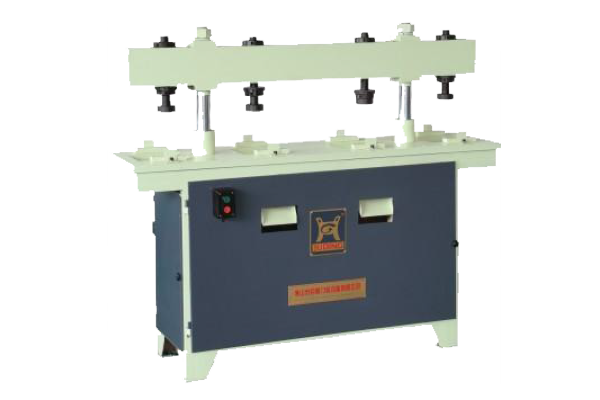

Used for installation of aluminium alloy windows and doors and the punching processing of aluminium profiles.
Through hydro-cylinder to drive balance staff in order to control two arm work at same time. Punching stability, high efficiency, low noise, no pollution and high precision. Easy and safe to change dies.
